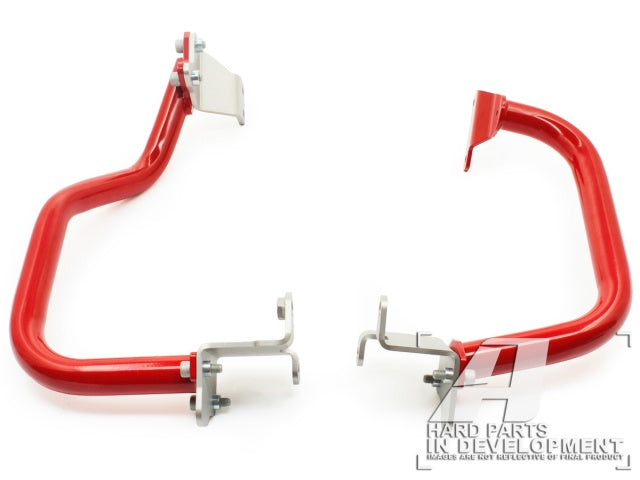

AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)
AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)

AltRider Lower Crash Bars for Honda CRF1100L Africa Twin (2020-2023)

AT20-5-1010

Regular price€275,95
/
Shipping calculated at checkout.
Color
Crash Bar Option
  • Free Shipping USA
  • In stock, ready to ship
  • Backordered

Radiator & Fairing Protection: Covers the bike's vulnerable radiator and expensive plastic fairings so a tip-over does not turn into a costly repair.
Frame-Mounted Strength: Bolts directly to the frame rather than the engine case, giving you a solid, reliable connection that holds up in a real crash.
Roll Cage-Like System: When combined with the Lower Crash Bars, the upper and lower bars lock together at thick stainless steel brackets to form a robust, cage-like structure around the bike.
Easy Servicing: PEM captive nuts let you remove the crash bars quickly for maintenance without fighting the hardware every time.
DCT Friendly: The DCT filter stays fully accessible with the crash bars installed, so routine service does not require removing the bars.
Quick Install: Designed to go on easily with included Loctite and first class manual

tRW4qPbbipI

Tubing Diameter: 1 in (25.4 mm)
Mounting Bracket Thickness: 3/16 in (4.8 mm)
Material: Stainless steel
Construction: Hand-TIG welded
Mounting Hardware: M6 stainless steel bolts, PEM captive nuts included
Weight: 12.5 lbs
Dimensions: 26 × 22 × 10 in

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

Install Instructions for the Full Crash Bar System:

Install Instructions for the Full Crash Bar System:

Radiator and Fairing Protection: Upper bars wrap around the radiator and plastic fairings — the most vulnerable and expensive parts to replace after a crash or tip-over.
Frame-Direct Mount: Brackets tie directly to the front sub-frame and headstock using M6 bolts, not the engine case, giving you a solid, reliable connection.
Stronger as a System: When combined with the lower 1.25-inch bars, the full assembly becomes a roll-cage-like structure — the strongest crash bar solution available for this bike.
Easy Servicing: PEM captive nuts allow quick removal of the upper bars for routine maintenance without tools or wrestling with loose hardware.
Service Friendly: DCT filter remains accessible with the upper bars in place, so you do not need to remove crash protection for basic service.
Hand-TIG Welded: Every weld is completed by hand using TIG process for consistent strength and a clean, durable finish.
Quick Install: Designed to go on easily with included Loctite and first class manual

Tubing Diameter: 1 in (25.4 mm)
Material: Stainless steel
Mounting Bracket Thickness: 3/16 in (4.8 mm)
Mounting Hardware: M6 stainless steel bolts included
Fastener Type: PEM captive nuts
Finish Options: Bead-blasted matte stainless steel; black, red, or white powder coat
Weight: 9.7 lbs
Dimensions: 26 × 22 × 10 in

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

Full System Protection: These bars connect the upper and lower crash bars into one unified structure, so impact force from a crash spreads across the whole system instead of concentrating on one point.
Heavy Impact Resistance: Hand-TIG welded 1-inch stainless steel tubing with 2.1mm wall thickness gives the system the strength to absorb large impacts and protect the engine, frame, and other vital components.
Easy DCT Maintenance: The DCT oil filter stays accessible with the crash bars installed, so you do not need to remove any protection to do routine maintenance.
Secure Mounting: Custom cast stainless steel clamps attach the reinforcement bars to the upper and lower bars using all included hardware, making installation straightforward.
Quick Install: Designed to go on easily with included Loctite and first class manual

tRW4qPbbipI

Material: Stainless steel tubing
Tubing Diameter: 1 in (25.4 mm)
Wall Thickness: 0.083 in (2.1 mm)
Clamps: Custom cast stainless steel
Welding: Hand-TIG welded
Finish Options: Bead-blasted matte stainless steel; black, red, or white powder coat
Weight: 3.5 lbs
Dimensions: 18 × 13 × 5 in

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

Install Instructions for the Full Crash Bar System:

Install Instructions for the Full Crash Bar System:

First Line of Defense: Engineered to absorb the first impact in a tip-over or low-side crash so the engine and other vital components never touch the ground
Extra-Stiff Tubing: At 1.25 inch diameter, these bars are more than twice as stiff as standard 1-inch crash bars, giving you stronger protection without added bull
Frame-Mounted Impact Transfer: Mounting flanges route crash energy away from the motor and into the lower frame, where the bike is strongest
Ergonomic Fit: CNC mandrel formed around the rear brake lever so the bars fit close to the bike without interfering with your foot controls
DCT & OEM Compatible: Works with both DCT and manual models and is compatible with the factory belly pan and OEM center stand
Quick Install: Designed to go on easily with included Loctite and first class manual

Material: Stainless steel tubing
Tubing Diameter: 1.25 in (31.75 mm)
Wall Thickness: 0.079 in (2.0 mm)
Mounting Flanges: 3/16 in (4.8 mm) stainless steel
Front Brackets: 3/16 in (4.8 mm) stainless steel
Hardware: M8 and M10 stainless steel included
Finish: Bead-blasted matte stainless steel (this SKU: silver)
Weight: 8.75 lbs
Dimensions: 21 × 10 × 6 in

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

First Line of Defense: Engineered to absorb the first impact in a tip-over or low-side crash so the engine and other vital components never touch the ground
Extra-Stiff Tubing: At 1.25 inch diameter, these bars are more than twice as stiff as standard 1-inch crash bars, giving you stronger protection without added bulk
Frame-Mounted Impact Transfer: Mounting flanges route crash energy away from the motor and into the lower frame, where the bike is strongest
Ergonomic Fit: CNC mandrel formed around the rear brake lever so the bars fit close to the bike without interfering with your foot controls
DCT & OEM Compatible: Works with both DCT and manual models and is compatible with the factory belly pan and OEM center stand
Quick Install: Designed to go on easily with included Loctite and first class manual

tRW4qPbbipI

Tubing Diameter: 1.25 in (31.75 mm)
Wall Thickness: 0.079 in (2.0 mm)
Mounting Flange Thickness: 3/16 in (4.8 mm)
Material: Stainless steel
Finish: Bead-blasted matte stainless steel; powder coat black, red, or white
Hardware: M8 and M10 stainless steel mounting hardware included
Weight: 6.65 lbs
Dimensions: 21 × 10 × 6 in

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

Install Instructions for the Full Crash Bar System:

Install Instructions for the Full Crash Bar System:

First Line of Defense: Engineered to absorb the first impact in a tip-over or low-side crash so the engine and other vital components never touch the ground
Extra-Stiff Tubing: At 1.25 inch diameter, these bars are more than twice as stiff as standard 1-inch crash bars, giving you stronger protection without added bull
Frame-Mounted Impact Transfer: Mounting flanges route crash energy away from the motor and into the lower frame, where the bike is strongest
Ergonomic Fit: CNC mandrel formed around the rear brake lever so the bars fit close to the bike without interfering with your foot controls
DCT & OEM Compatible: Works with both DCT and manual models and is compatible with the factory belly pan and OEM center stand
Quick Install: Designed to go on easily with included Loctite and first class manual

Tubing Diameter: 1.25 in (31.75 mm)
Wall Thickness: 0.079 in (2.0 mm)
Mounting Bracket Thickness: 3/16 in (4.8 mm)
Material: Stainless steel
Construction: Hand-TIG welded, CNC mandrel formed
Mounting Hardware: M8 and M10 hardware included
Weight: 8.75 lbs
Dimensions: 21 × 10 × 6 in

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

First Line of Defense: Engineered to absorb the first impact in a tip-over or low-side crash so the engine and other vital components never touch the ground
Extra-Stiff Tubing: At 1.25 inch diameter, these bars are more than twice as stiff as standard 1-inch crash bars, giving you stronger protection without added bulk
Frame-Mounted Impact Transfer: Mounting flanges route crash energy away from the motor and into the lower frame, where the bike is strongest
Ergonomic Fit: CNC mandrel formed around the rear brake lever so the bars fit close to the bike without interfering with your foot controls
DCT & OEM Compatible: Works with both DCT and manual models and is compatible with the factory belly pan and OEM center stand
Quick Install: Designed to go on easily with included Loctite and first class manual

Tubing Diameter: 1.25 in (31.75 mm)
Wall Thickness: 0.079 in (2.0 mm)
Mounting Bracket Thickness: 3/16 in (4.8 mm)
Material: Stainless steel
Construction: Hand-TIG welded, CNC mandrel formed
Mounting Hardware: M8 and M10 hardware included
Weight: 6.65 lbs
Dimensions: 21 × 10 × 6 in

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

First Line of Defense: Engineered to absorb the first impact in a tip-over or low-side crash so the engine and other vital components never touch the ground
Extra-Stiff Tubing: At 1.25 inch diameter, these bars are more than twice as stiff as standard 1-inch crash bars, giving you stronger protection without added bull
Frame-Mounted Impact Transfer: Mounting flanges route crash energy away from the motor and into the lower frame, where the bike is strongest
Ergonomic Fit: CNC mandrel formed around the rear brake lever so the bars fit close to the bike without interfering with your foot controls
DCT & OEM Compatible: Works with both DCT and manual models and is compatible with the factory belly pan and OEM center stand
Quick Install: Designed to go on easily with included Loctite and first class manual

The Honda Africa Twin was built for riders who push deep into rough terrain — rocky climbs, muddy trails, and remote backcountry where drops are part of the ride. When that happens, these Lower Crash Bars are designed to take the hit before your engine or frame does.

Built from hand-TIG welded stainless steel tubing, the bars are CNC mandrel-formed for maximum strength and precise fitment around critical controls like the rear brake lever. Rear mounting flanges route crash energy into the lower frame instead of the engine, while thick stainless steel front brackets bolt directly to the frame for a solid, non-flexing connection.

These Lower Crash Bars are the foundation of AltRider’s 3-part crash protection system. Run them alone or expand later with Upper Crash Bars and the Full System for increased protection on more demanding terrain.

An optional integrated headlight guard is also available in steel mesh or clear polycarbonate to help protect one of the bike’s most expensive components when riding far from home. Available individually or as part of the Full System.

Tubing Diameter: 1.25 in (31.75 mm)
Wall Thickness: 0.079 in (2.0 mm)
Mounting Bracket Thickness: 3/16 in (4.8 mm)
Material: Stainless steel
Construction: Hand-TIG welded, CNC mandrel formed
Mounting Hardware: M8 and M10 hardware included
Weight: 8.75 lbs
Dimensions: 21 × 10 × 6 in

×
